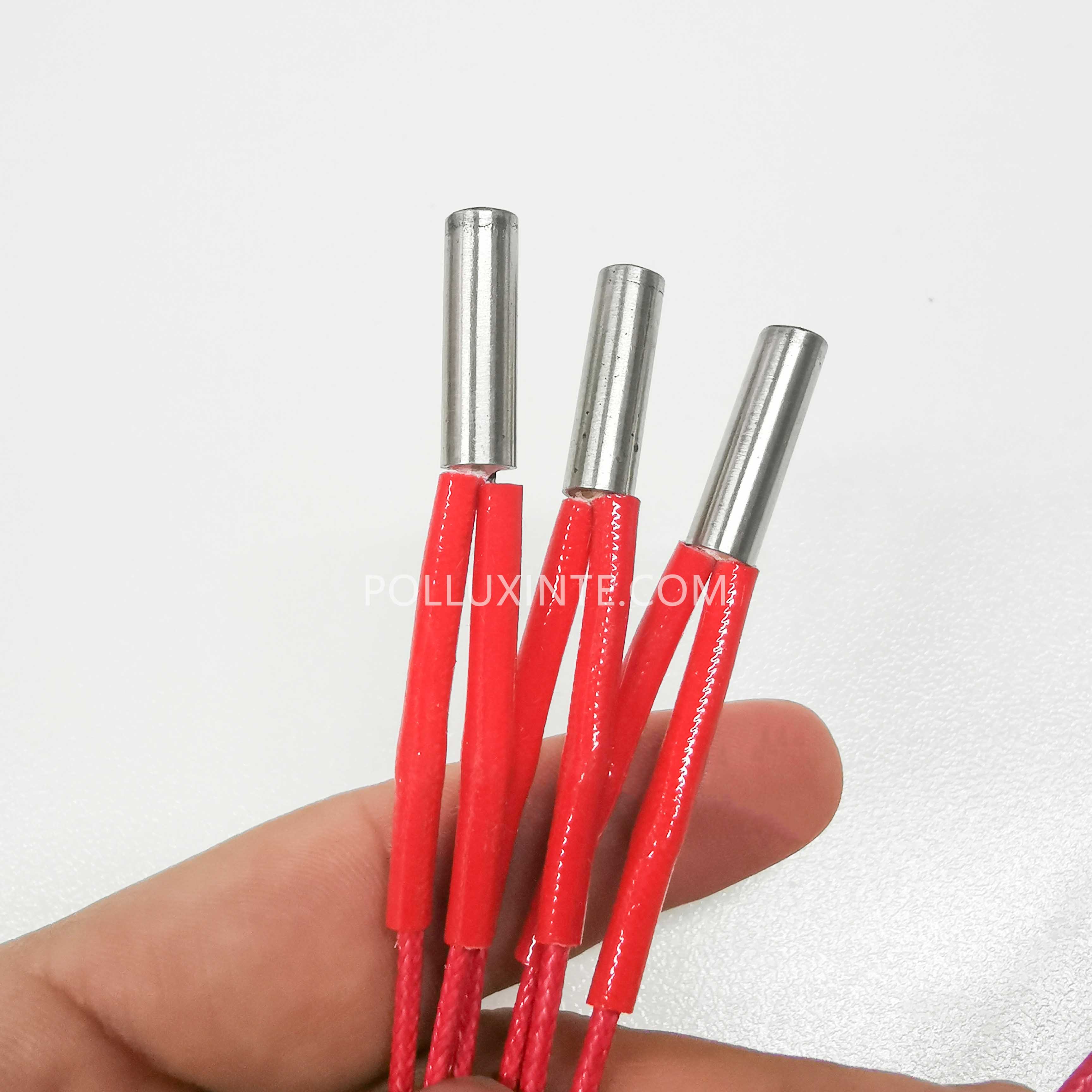

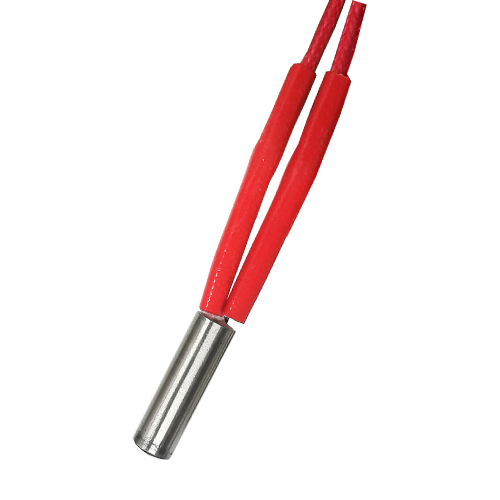

24V 40W Cartridge Heater for 3D Printer
This 3D printer cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention.
The cartridge heating wire inside which is wound onto a ceramic core
The number of coils varies depending on the power, and provide a great uniform distribution of heat, which considerably increases the long life of the cartridge heater as well as prevents the oxidation of the heater wire even at high temperatures
Fits Many MonoPriceFlashforgeWanahoo MK10 3D Printers
Technical Specification
| Sheath Material | SS304/321/310S/Incoloy800/840 |
| Resistance Heating Wire | Cr20Ni80 |
| Leads Material | Fiberglass (180°C) Teflon (260°C) Pure Nickel (400°C) |
| Power Tolerance | ±10% |
| Maximum Sheath Temperature | 750°C/1380°F |
| Insulation Resistance | ≥5MQ, 500V (DC) |
| Length Tolerance | ±1.5%, minimum ±1 mm |
| Diameter Range | 3mm ~ 25.4mm |
| Diameter Tolerance | -0.02 ~ -0.06 (if not specified) |
| Maximum Voltage | 480V |
| High Voltage Ttest | 1500V |
| Maximum Surface Load | 25W/cm² |
| Thermocouple | Type J or Type K |
Application:
Food processing
Glue guns
Heat sealing equipment
Heating gases and liquids
Hot runner molds
Hot stamping
Labeling machines
Medical equipment
Molds and Dies
Packaging equipment
Plastic extruders
Plastic molding
Shoe machinery
