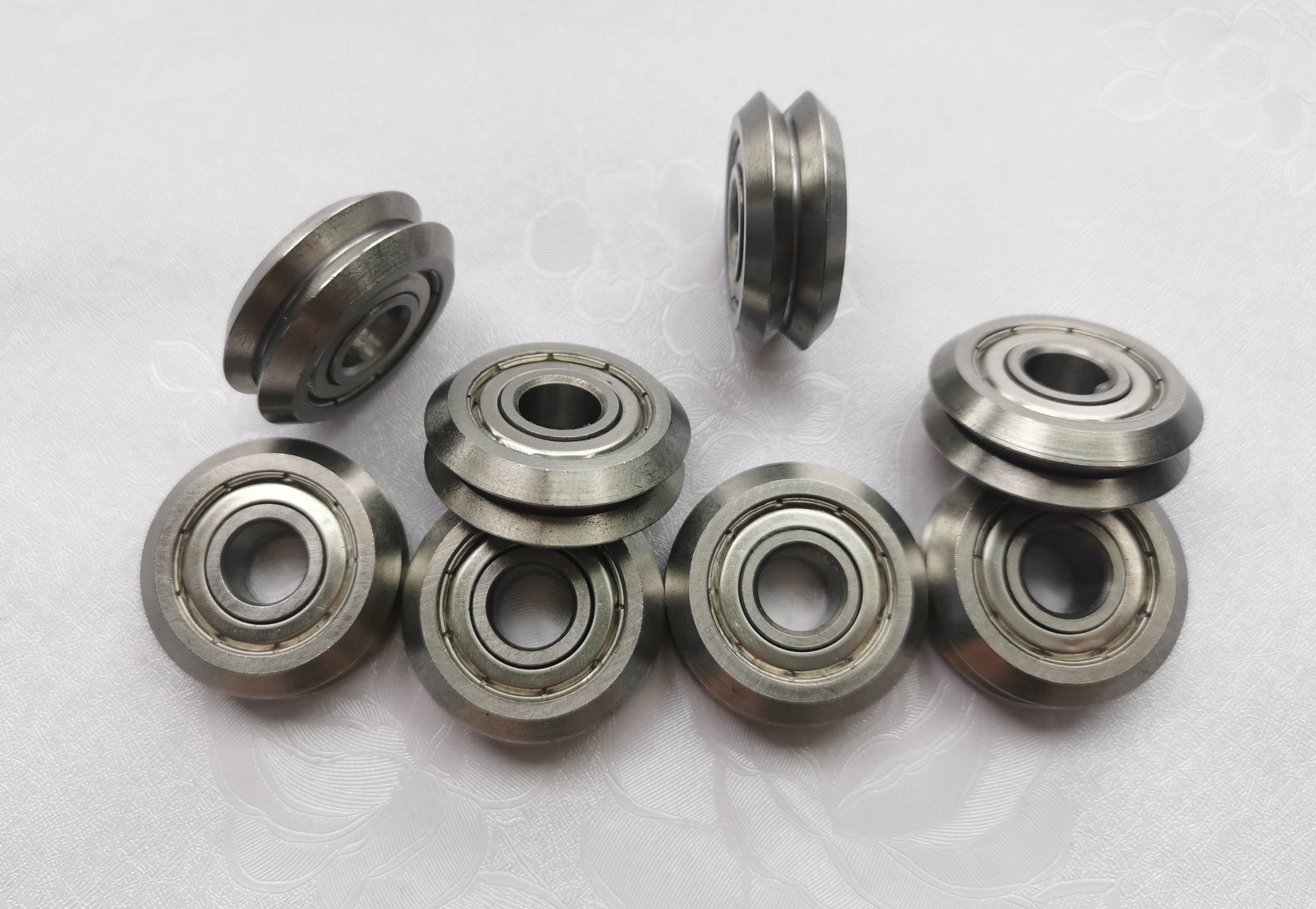

With two V type W2 RM2 /ZZ/2RS rail roller bearings
Inner diameter (d): 9.525mm
Outer diameter (D): 30.73mm
Width (B): 11.1mm
Slot angle: 90 degrees
Groove shape: W type
Chamfer (min) (rs): 0.3
Basic dynamic load rating Cr (KN): 4.9
Basic static load rating Cor(KN): 2.5
Weight: 38g
Material: Gcr15 bearing steel
Characteristics and application of W type guide roller bearing:
1. W series guide rail roller bearings are the main components of sliding bearings in the guiding system, which are widely used in industrial robots, cutting equipment, moving guide rails, production lines, etc.
2. The guide rail roller bearing adopts double-row angular contact ball design. The internal structure design of the bearing and the thickened outer ring make the roller have a higher load-carrying capacity. The sliding bearing works smoothly, reliably, and without noise. Under liquid lubrication conditions, the sliding surface Being separated by lubricating oil without direct contact, it can also greatly reduce friction loss and surface wear. The oil film also has a certain ability to absorb vibration.
3. W series guide roller bearings are linear guide roller bearings, and the outer ring is a W-shaped outer surface composed of two 90-degree V-shaped. The inner or outer side can be used alone to adapt to a 90-degree inner or outer V-shaped guide rail, or the inner side can be used to adapt to a cylindrical guide rail.
4. The roller bearing is made of high-quality bearing steel, processed by heat treatment and precision grinding, and filled with long-life high-quality multi-purpose grease inside, so that the roller has a system or equipment that requires the wear of the guide rail. The company uses double hardness Special design, that is, the internal structure of the roller adopts standard hardness to ensure that the roller has a long working life.
5. Related model W1.RM1.W2.RM2.W3.RM3.W4.RM4.W0.RM0, need to understand W1=W1X=RM1=W1SSX roller bearing model size, weight, price, installation, maintenance and other information, please contact us contact.
Our company has a large amount of spot inventory, complete varieties, quality assurance, and can also be customized with drawings and samples. Welcome new and old customers to inquire and order.
