Details
Features
> Cooling / heating control (1 relay)
> Temperature alarm output (1 relay)
> Correnction of the present temperature
> Restrictive function for setting range
of the upper or lowest limit
> SSR output (2002RS)
※ FOX-2002DN (Diode + NTC Sensor)
Specification

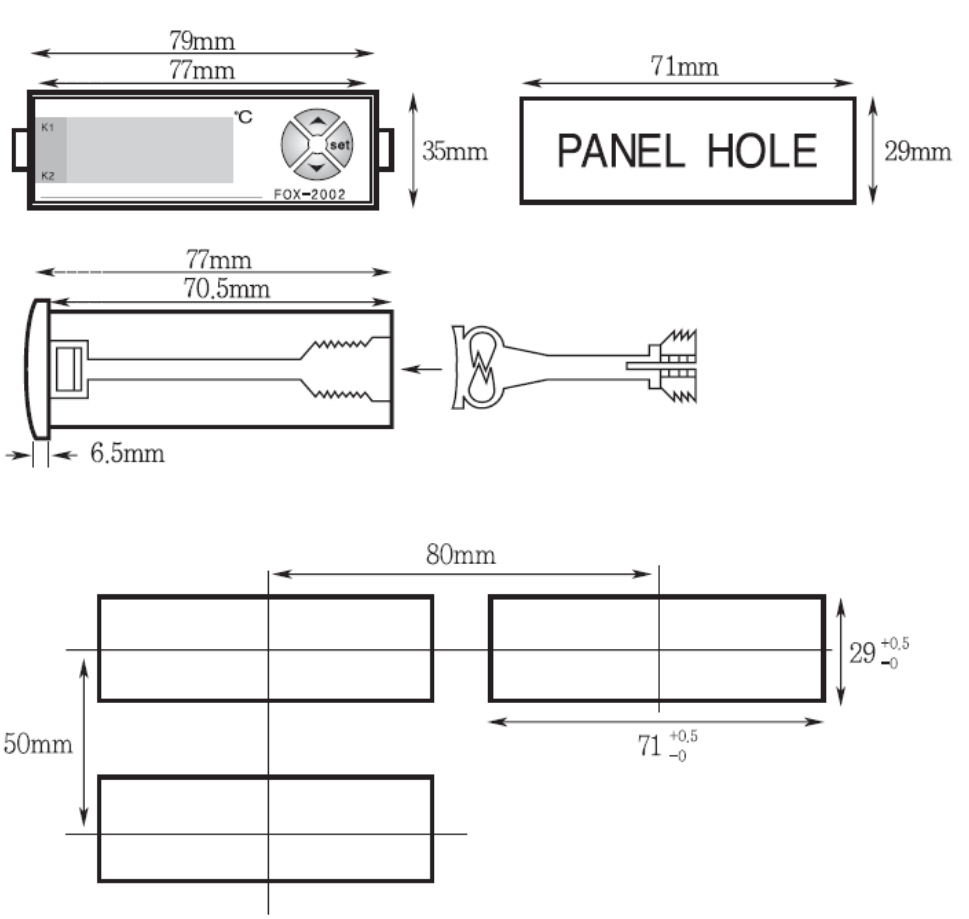

Size | 77(W) x 35(H) x 78(D) |
Operating Range | -55.0 ~ 99.9℃ |

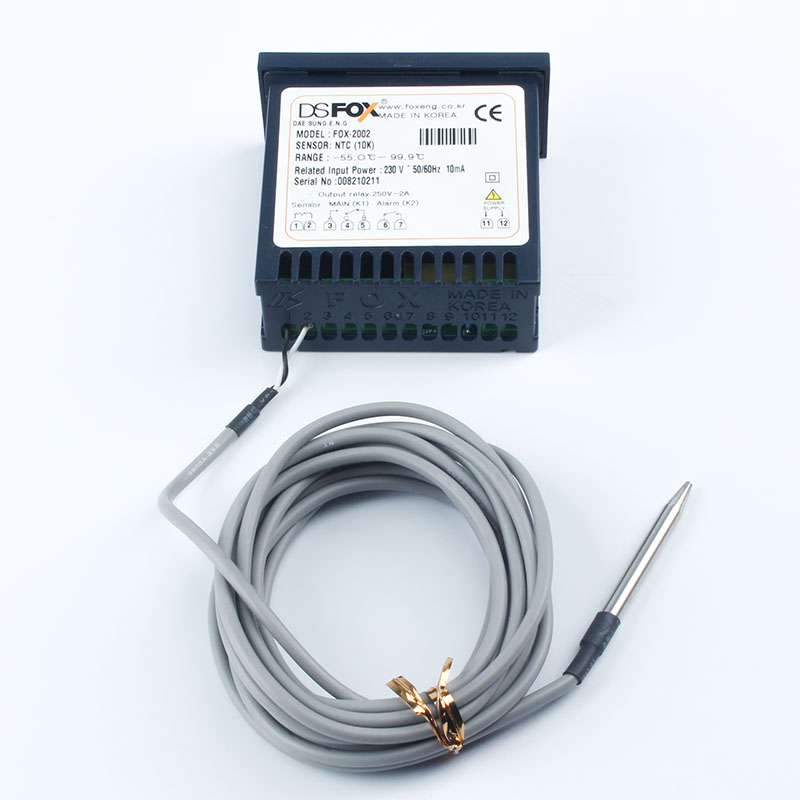

Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |

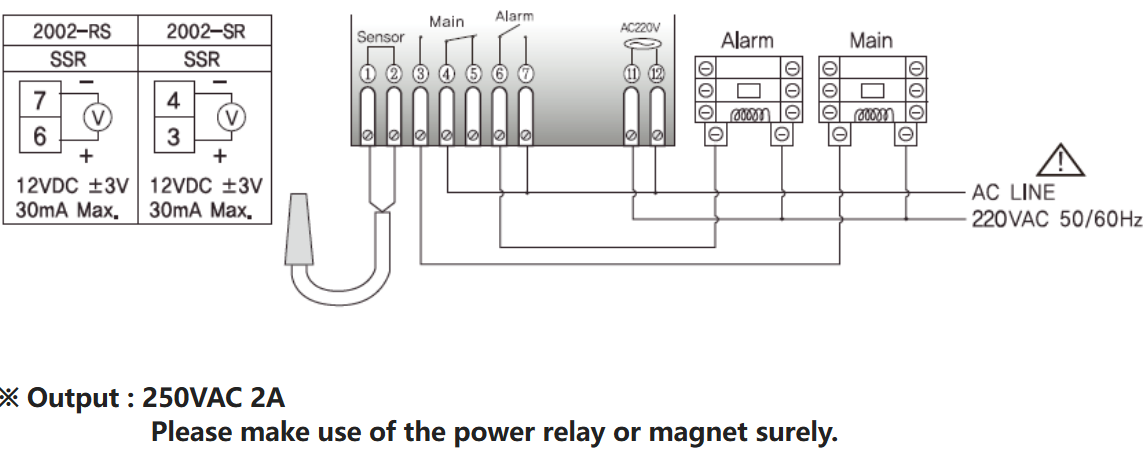

Output | 2 relay (1c 1a 250VAC 2A) |

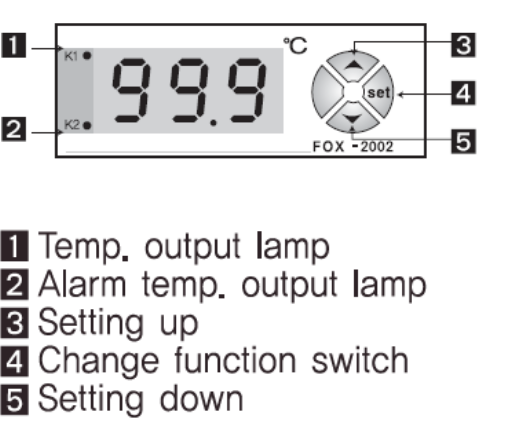

Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V or 24V AC/DC( ±10% ) |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 280g |
